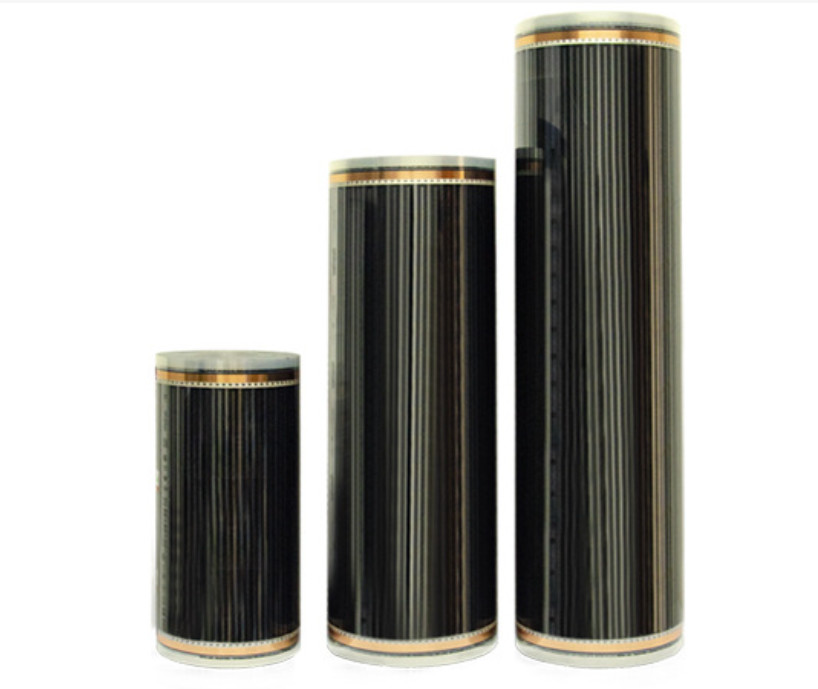

Graphene Electric Underfloor Heating Film 120cm

Graphene Electric Heating Static Film Heating Film Power 10W-450W Width 10cm-120cm Heating Film Heating Film

Product introduction:
Graphene flexible electric heating film is a high-tech product after graphene material processing.

The surface of the graphene flexible electric heating film is made of polymer resin, which is soft in texture, safe and practical, foldable, non-toxic and harmless material, green and environmental protection; high temperature resistance 210 ° C, acid and alkali resistance, IPX7 waterproof, V2 flame retardant, silent product .

Heating principle:
The heating principle of the graphene flexible electric heating film is that under the action of the electric field, the carbon molecules in the heating body produce "Brownian motion", and the carbon molecules generate violent friction and collision, and the generated heat energy is transmitted by far-infrared radiation and convection. The form is transferred to the outside, and the action of carbon molecules causes the surface of the system to heat up rapidly.

Product Features
Flexibility, graphene infrared heating, high conversion rate, 180 ℃ self-fusing technology, uniform heat generation, wide range of uses.

Parameters of synthetic graphite sheet

Thickness (mm)		DSN5017	DSN5025	DSN5032	DSN5040	DSN5050
Thickness (mm)		0.017±0.003	0.025±0.003	0.032±0.004	0.04±0.005	0.05±0.005
Thermal conductivity	X-Y axis (w/m.k)	1700~1900	1700~1850	1550~1750	1450~1650	1400~1600
Thermal conductivity	Z axis (w/m.k)	10~15	12~18	12~18	13~19	15~22
Density (g/cm3)		2.1±0.1	2.1±0.1	2.0±0.1	1.9±0.1	1.9±0.1
In-please thermal diffusivity (mm2/s)		920~1040	930~1010	890~1010	880~1000	850~970
Heat capacity (J/g/K)		0.87±0.01	0.87±0.01	0.87±0.01	0.87±0.01	0.87±0.01
Heat resistance temperature (℃)		-40~400	-40~400	-40~400	-40~400	-40~400
Thermal resistance (℃)		0.15%	0.15%	0.15%	0.15%	0.15%
Electric conductivity (s/cm)		50000	50000	50000	50000	50000

Thickness (mm)		DSN5060	DSN5070	DSN5080	DSN5090	DSN5100
Thickness (mm)		0.06±0.006	0.07±0.007	0.08±0.008	0.09±0.009	0.1±0.01
Thermal conductivity	X-Y axis (w/m.k)	1350~1550	1200~1400	1200~1400	1100~1300	1000~1200
Thermal conductivity	Z axis (w/m.k)	15~22	15~22	15~22	15~22	15~22
Density (g/cm3)		1.85±0.1	1.7±0.1	1.7±0.1	1.6±0.5	1.5±0.1
In-please thermal diffusivity (mm2/s)		840~960	830~970	810~950	790~930	770~920
Heat capacity (J/g/K)		0.87±0.01	0.85±0.01	0.87±0.01	0.87±0.01	0.87±0.01
Heat resistance temperature (℃)		-40~400	-40~400	-40~400	-40~400	-40~400
Thermal resistance (℃)		0.15%	0.15%	0.15%	0.15%	0.15%
Electric conductivity (s/cm)		50000	50000	50000	50000	50000
