High temperature surface reinforcement protection, high temperature
spray painting and sandblasting of metal materials to cover surface
protection, after high temperature spray painting and baking, it is
easy to peel off without leaving glue residue. , It has the
advantages of high temperature resistance, high tensile strength,
good chemical resistance, no adhesive residue, and ROHS

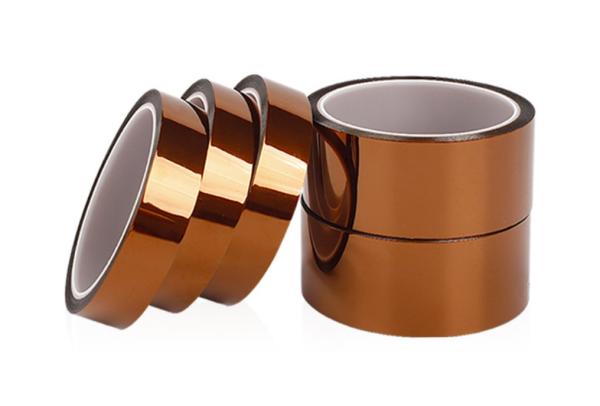

environmental protection and halogen-free. The tape is based on
polyimide film and is coated with high-performance silicone
pressure-sensitive adhesive on one side. , In the electronic and
electrical industry and circuit board manufacturing industry, it
has the advantages of high temperature resistance, high tensile
strength, good chemical resistance, no glue residue, RoHS
environmental protection and halogen-free. Imide tape is the
world's best performance film insulation The material is formed by
polycondensation of pyromellitic dianhydride (PMDA) and
diaminodiphenyl ether (DDE) in a strong polar solvent, casting into
a film, and then imidization. Imide tape has excellent high and low
temperature resistance, electrical insulation, adhesion, radiation
resistance, medium resistance, chemical stability and flame
retardancy. It can be used for a long time in the temperature range
of -269 ℃ ~ 280 ℃, and can reach a high temperature of 400 ℃ in a
short time. Imide tape is mainly used in insulation of F, H class
motors and electrical appliances, FPC (flexible printed circuit
board), TAB (pressure-sensitive tape substrate), computers, magnet
wires, transformers, audio, mobile phones, electronic components,
automobiles and other electrical and electronic industries.
Application
1. The thermocouple wire shall be pasted when measuring the
temperature of the reflux furnace;
2. It is used to paste the flexible circuit board (FPC) on the
fixture, so as to carry out a series of processes such as printing,
patch and testing;
3. It can be wrapped on the cable and used as insulating tape;
4. It can be pasted on the connector for picking up materials by
the mounter, so as to replace the iron sheet;
5. It can be die cut into any other shape for some special
purposes.
