Black Polyimide Adhesive Tape ESD Kapton Tape

Product Categories

Anhui Uniform Trading Co.Ltd

Contact Now

Black Polyimide Adhesive Tape ESD Kapton Tape

Ask Lasest Price
Brand Name :	UNIFORM
Model Number :	AUTC-PAT-602
Certification :	RoHS, ISO9001, CE, TUV
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	5000,000rolls/day
Delivery Time :	10-12days

Add to Cart

Product Details
Company Profile

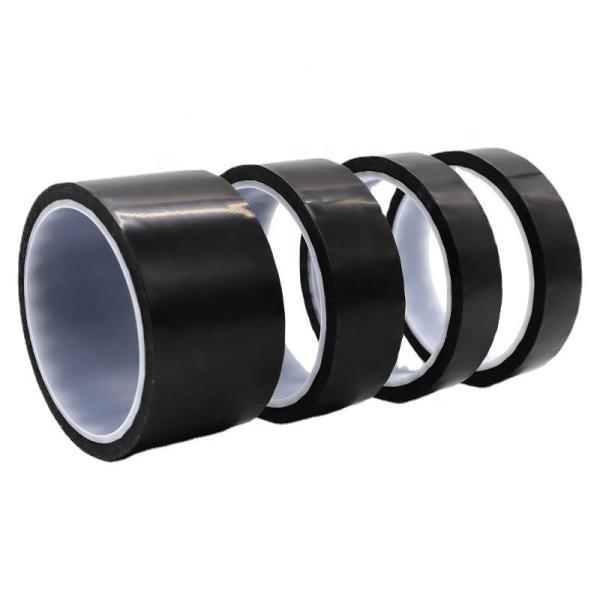

Black Polyimide Adhesive Tape ESD Kapton Tape

33-100m High Temperature Heat Resistant ESD Black Polyimide Single Sided Adhesive Tape

Description

Black Polyimide Tape is made of polyimide film coated with high-temperature resistant silicone. high and low temperature resistant, high insulation, tear-resistance, no extra adhesive residue.
WIDE RANGE OF APPLICATIONS for sensitive circuit boards (PCB) masking; phone batteries packing; soldering, electrical
insulation, and splicing wires...good quality adhesive, good viscosity, no extra glue left when removing.

Feature

Thin backing leaves a sharp paint line
Silicone adhesive offer high heat resistance,reducing failure due to softening,oozing and adhesive transfer.
Silicone adhesive remove cleanly without glue residue
Polyimide film offer excellent thermal,abrasion and chemical resistance while maintaining their flexibility.
Amber color makes tape placement obvious for both application and removal

Application

·It can endure high temperature up to 260 °C within half an hour.
·electrical insulation, radiation resistance, solvement resistance ,heat resistance,etc.
·Its mostly applied for the motor insulation, protection of PCB during wave soldering etc.
Without any residue after the tape is removed from the gold finger.

Details

Backing	0.075mm Polyimide film
Adhesion	Silicone
Color	Amber
Thickness (mm)	0.11
Width(mm)	500mm
Length (m)	33M
Tensile Strength (N/25mm)	≥160
Elongation (%)	≥60
Breakdown strength (N/25mm)	≥200
Voltage resistance (KV)	12
Adhesion (N/25mm)	≥6
Temperature Resistance (℃)	260℃

Black Polyimide Adhesive Tape ESD Kapton Tape
